NEW     NEW      NEW     NEW

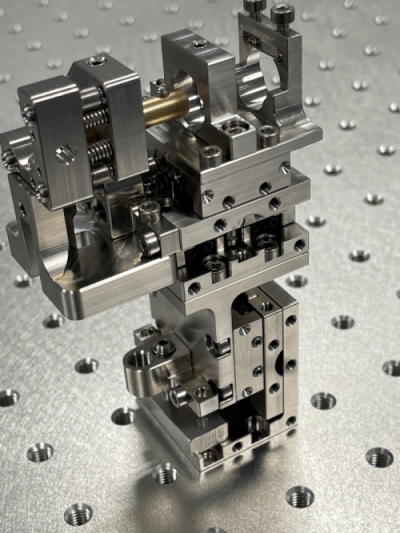

5-axis XYZ Tip-Tilt Mount
Cross roller guides guarantees precise translation in the X, Y and Z-axes
170 TPI fine thread screws offers drift-free positioning




2016/06
______________________________________________________________________________________________________________________________________________________

FLUPS

Femtosecond Fluorescence Upconversion Spectrometer

Broadband femtosecond fluorescence spectroscopy, i.e. simultaneously upconverting the entire fluorescence spectrum at any given time delay after excitation, has been developed by Niko P. Ernsting and his co-workers at Humboldt University at Berlin, Germany. LIOP-TEC GmbH and Niko P. Ernsting joined forces to offer a FLUPS package for experienced researchers in the field. Please check out our flyer for details





2015/05
______________________________________________________________________________________________________________________________________________________


               Patent Pending                                    high resolution 5-axes
                     "s-lock"                                                   laser table



                        fixing each screw                                                           easy and exact alignment
           without changing pointing direction                                        diode laser modules up to 100kg

______________________________________________________________________________________________________________________________________________________

          6 inch x-y lens
mount                     mounts with micrometer screw




                        for telescope application
                     other sizes on request

______________________________________________________________________________________________________________________________________________________

High Flowrate Dye Circulator
with function monitoring for high safety


usable with most common solvents
  • dye circulator with low noise gear pump
  • flowrate of >10 liters/minute
  • 4 liter reservoir and pipework made of stainless steel
  • electronic control of dye flow and dye temperature
  • accustic warning and interlock function

 _____________________________________________________________________________________________________________________________________________________

ANTARES-O       ANTARES-DD



______________________________________________________________________________________________________________________________________________________


 Planet and Star with rectangular frame


_________________________________________________________________________________________________________________

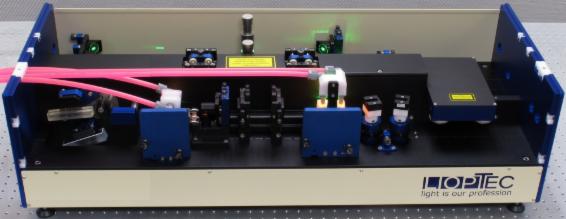

LiopStar-HQ
high repetition rate dye laser


   redesigned dye laser - optimized for high repetition rate application
   ideal for LIF and combustion studies


______________________________________________________________________________________________________________________________________________________

PiezoStar


From now on we offer our mirror mounts with remote control. This option was developed in collaboration with Physik Instrumente GmbH. The control is based on a linear screw-type actuator with piezo motor (stick-slip).


                               - High resolution                                              Applications:
                               - Stable positioning                                                             - optical setup under vacuum conditions
                               - Self-locking when at rest                                               - optical alignment where mounts are difficult to access
                               - Suitable for vacuum down to 10-6 mbar      - optical beam paths in restricted areas


______________________________________________________________________________________________________________________________________________________

Stainless Steel Linear Translation Stage


Jet-S-025     25mm travel length


______________________________________________________________________________________________________________________________________________________
ASTEROID
1/2" mirror mount of stainless steel
with screw lock



AS050K-050-3


______________________________________________________________________________________________________________________________________________________

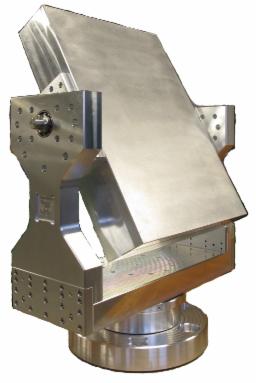

ANTARES Mirror Mounts
The Bright Solution for Your
Large-Sized Optics



  • Gimbal design
  • For large optics according to customer demand
  • Adjustment by 170 TPI fine thread screws (standard)
  • Available with piezo drive
  • Suitable for high vacuum applications

          Typical application: Beam steering in compressor chambers of ultrahigh power laser systems

______________________________________________________________________________________________________________________________________________________

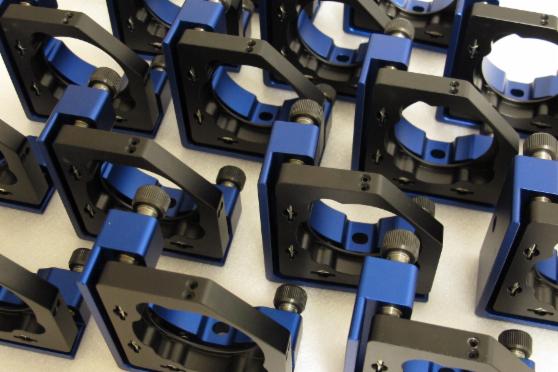

                          STARi mounts with integrated front plate



  • STARi can be parked on the table without clamping
  • easier alignment of complex optical setups
  • closed front with 4 fixing screws for left- and right hand use
  • two access holes allows easy exchange of optic
  • available as 2", 3" ... 6" mounts, open and closed front






                      SR300i-300R-2S-BU                 SR300i-300-2S-BU                  SR300i-300L-2S-BU



                        ______________________________________________________________________________________________________________________________________________________


     TITAN




                            mount for UHV application - manufactured of stainless steel and titanium
